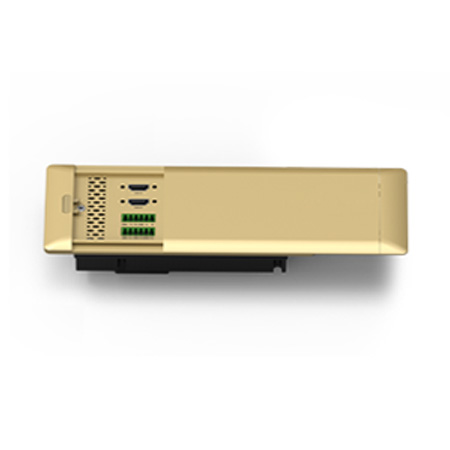

2K DVI Video Codec

AVCiT 2K DVI Video Codec

The H.264-based DSII DVI Codec Node is designed to transmit FHD video + UDP + RS232/485 + IR over standard 1GB IT network, with low latency and high image quality. It could be configured either as an encoder, or as a decoder for an integrated and visualized Video Wall Controller & KVM over IP System.
  • Applications: Control Room, Network Operation Center (NOC), Security Operation Center (SOC), Emergency Operation Center (EOC), Joint Operation center(JOC), Airport Operation Center (AOC), Traffic Operation Center(TOC), Board Room, Meeting Room etc.

  • Industries: Government, Public Security, Finance, Telecomm, Energy & Utility, Oil & Gas, Transportation, Aviation, Military & Defense, Armed Force, Smart City, Broadcasting, Sea Port, Offshore, Enterprise etc.


Specification of 2K DVI Video Codec

Video Interface Port

DVI INx1, DVI OUTx1

Audio Interface Port

3.5mm Analog INx1, 3.5mm Analog OUTx1

Control Interface Port

RS232 x1, RS485 x1, IO/IR x3

Resolution

Up to 1920x1080p@60

Protocol

H.264, RTSP, HDCP and HDMI 1.4 compatible with DVI 1.0

Bandwidth

4~20 Mbps configurable for per streaming

Transmission Distance

90 meters over CAT6 cable

Audio Control

audio matrix switching, audio mixing, embed and de-embed feature

Power Supply

PoE (802.3 AT) or 5V 3A Power Adapter


Highlights of 2K DVI Video Codec

Highlights of 2K DVI Video Codec

POE supported, no standalone PSU required.


Highlights of 2K DVI Video Codec

Compatible with H.265 Encoder/Decoder in same system.


Highlights of 2K DVI Video Codec

Distributed computing technology, no need for additional server.


Highlights of 2K DVI Video Codec

Plug & play and support hot-swap.


Highlights of 2K DVI Video Codec

Fanless chassis by dedicated heat sink with Extreme cooling performance.


Schematic of Combining as Video Wall Controller & KVM over IP System

Schematic of Combining as Video Wall Controller & KVM over IP System zoom in
Schematic of Combining as Video Wall Controller & KVM over IP System

Demo Video about 2K Video Wall Controller over IP

Demo Video about 2K Video Wall Controller over IP
