288-port Fiber KVM Matrix

AVCiT Phinx-288 Ports Fiber KVM Matrix

AVCiT Fiber KVM Collaboration System (non-IP) is based on distributed and scalable architecture with optional features, which can be configured as a KVM matrix, KVM switch, KVM extender, video wall controller or all of them in same system. By its advanced features and uncompressed image transmission with redundancy features to transmit 4K@60 4:4:4 chroma images, the solution is add-value for control room, TOC, AOC in transportation, energy, aviation industries. There are 24 slots for Fiber Optic I/O module or Video Wall Control module by 288 Ports Fiber KVM Matrix

Specification of Phinx-288 Ports Fiber KVM Matrix

ResolutionSupport 3840x2160@60 and downward compatibility
Image ProcessingAdvanced FPGA
Channel Amountmax. 288 channels by auto-recognize Fiber I/O port
Bandwidthup to 12 GB per channel
Communication PortRS232 x1,  RJ45x1
ProtocolSNMP, RS232, UDP
Transmission DistanceTransmit audio, video, control signals over fiber optic up to 20km.
Power Supply110-220V PSU, power redundancy available
Dimension481x457x864 mm, racked by standard rack


Highlights of Phinx-288 Ports Fiber KVM Matrix

Highlights of Phinx-288 Ports Fiber KVM Matrix

Reliable redundancy with automatic takeover feature between main and backup matrix host.

Highlights of Phinx-288 Ports Fiber KVM Matrix

Seamless switching, no black screen, no re-synchronization, no delay, scalable resolution.

Highlights of Phinx-288 Ports Fiber KVM Matrix

Flexible to configure as a KVM matrix, KVM extender or video wall controller.

Highlights of Phinx-288 Ports Fiber KVM Matrix

Fully cross-point matrix switching, Auto-recognizable port for  input or output signal

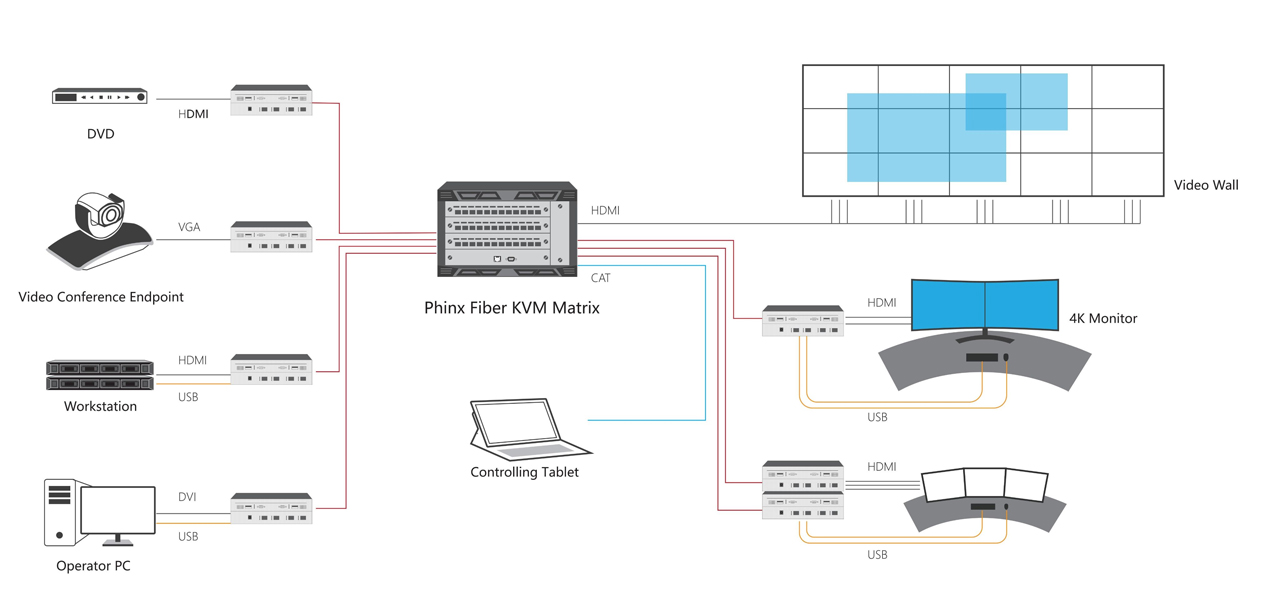

Schematic of Phinx-288 Ports Fiber KVM Matrix

Schematic of Phinx-288 Ports Fiber KVM Matrix zoom in
Schematic of Phinx-288 Ports Fiber KVM Matrix
