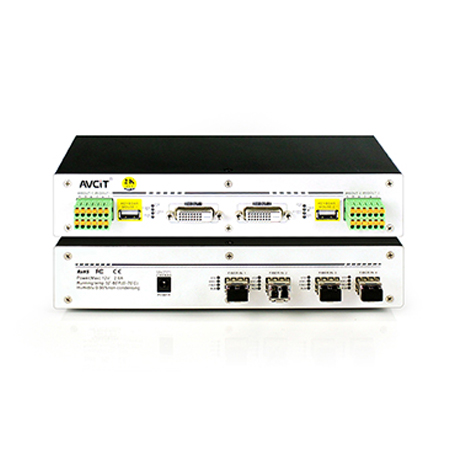

Kvm Matrix Switch 2K KVM Receiver-DVI

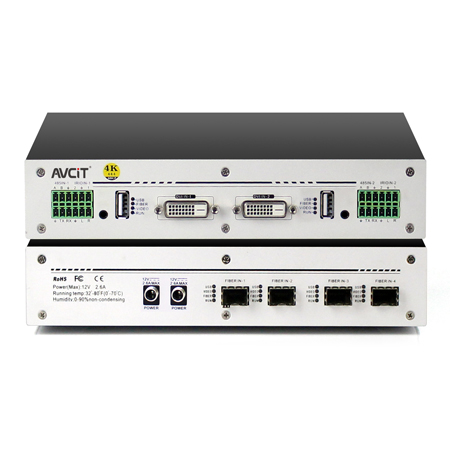

2K KVM Receiver-DVI

2K KVM Receiver (DVI) is designed with two standalone channels to receive FHD Video + Audio + USB-HID + RS232/485 + IR over fiber optic up to 20 km, with original image quality and nearly zero latency. It would be configured as receiver of a all-in-one Visualized & Distributed Fiber KVM and Video Wall Control System or a KVM Extender or a KVM Matrix.
  • Applications: Control Room, Network Operation Center (NOC), Security Operation Center (SOC), Emergency Operation Center (EOC), Joint Operation center(JOC), Airport Operation Center(AOC), Traffic Operation Center(TOC), Board Room, Meeting Room, etc.

  • Industries: Government, Public Security, Finance, Telecomm, Energy & Utility, Oil & Gas, Transportation, Aviation, Military & Defense, Armed Force, Smart City, Broadcasting, Sea Port, Offshore, Enterprise, etc.

Specification of 2K KVM Receiver-DVI

Video PortDVI OUTx2
Audio PortMIC x2
Control PortRS232 x2, RS485 x2,IR/IO x4,USB2.0 x2
Communication PortFiber SFP x4
Resolution1920x1200 4:4:4 and downward compatibility
Image ProcessingAdvanced FPGA
ProtocolHDCP and HDMI 1.4 compatible with DVI 1.0
Bandwidthup to 12 GB per channel
Transmission Distanceup to 20 km over fiber optic
Audio Controlaudio matrix switching, audio mixing, embed and de-embed feature.
Power Supply12V 2.6A Adapter, available to make power redundancy
Power Supply: 12V 2.6A Adapter, available to make power redundancy


Highlights of 2K KVM Receiver-DVI

Highlights of 2K KVM Receiver-DVI

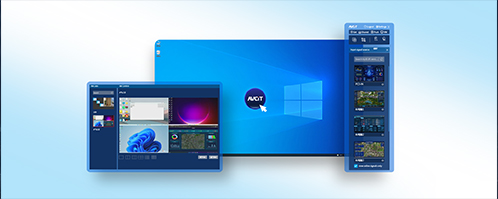

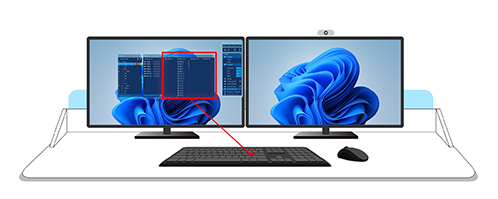

In-built OSD interface to get access and control the source PC, no need additional software

Highlights of 2K KVM Receiver-DVI

Redundant power supply by 12V 2.6 A PSU for 24/7 operation

Highlights of 2K KVM Receiver-DVI

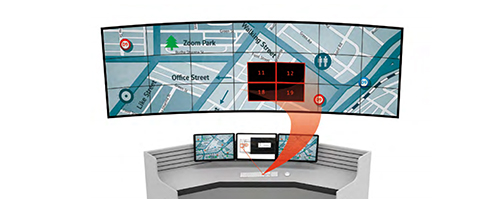

GET&PUSH features by Hotkey to securely control the PC

Highlights of 2K KVM Receiver-DVI

Permission management with Exclusive, viewly and Share

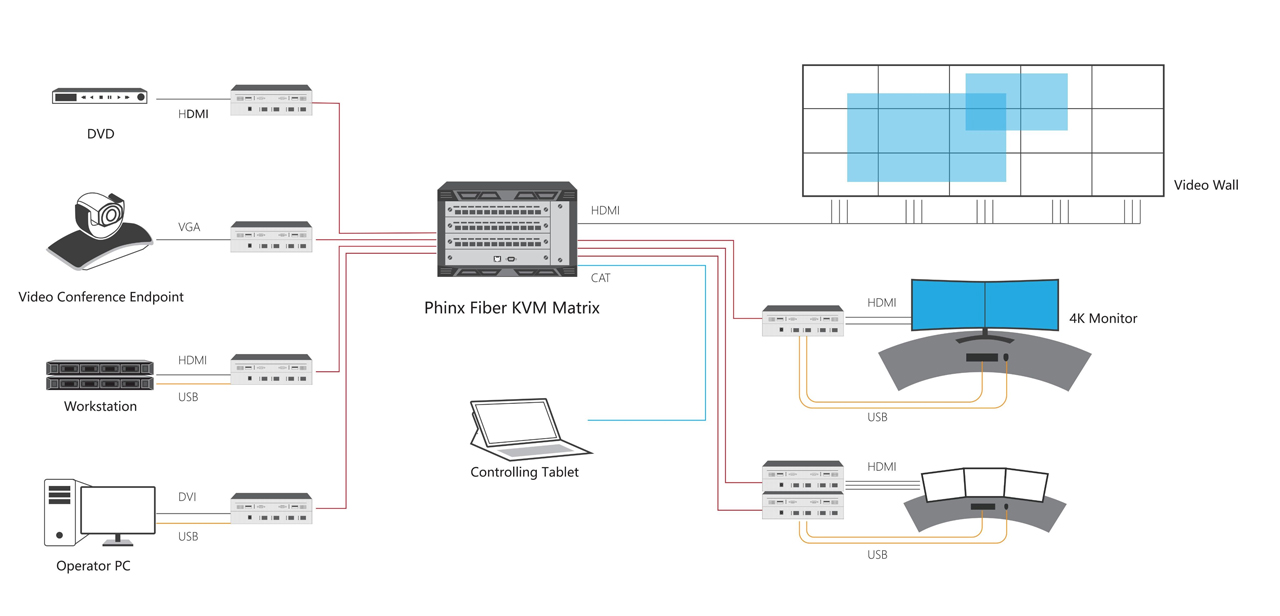

Schematic of Fiber KVM Matrix

Schematic of Fiber KVM Matrix zoom in
Schematic of Fiber KVM Matrix

Demo Video about Fiber KVM Matrix

Demo Video about Fiber KVM Matrix
