Video over Ip 4K KVM Transmitter-DVI+DVI LOOP

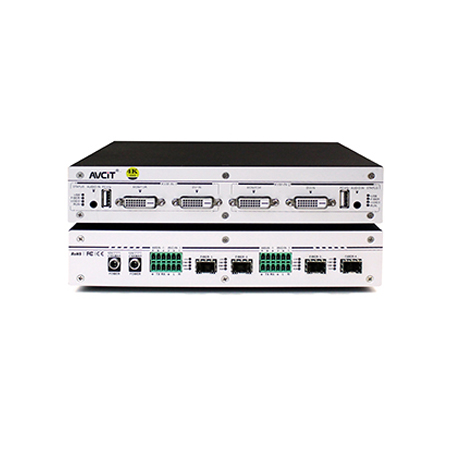

4K KVM Transmitter-DVI+DVI LOOP

4K KVM Transmitter (DVI + DVI LOOP) is designed with two standalone channels to transmit UHD Video + Audio + USB-HID + RS232/485 + IR over fiber optic up to 20 km, with original image quality and nearly zero latency. It would be configured as transmitter of a all-in-one Visualized & Distributed Fiber KVM and Video Wall Control System or a KVM Extender or a KVM Matrix.
  • Applications: Control Room, Network Operation Center (NOC), Security Operation Center (SOC), Emergency Operation Center (EOC), Joint Operation center(JOC), Airport Operation Center(AOC), Traffic Operation Center(TOC), Board Room, Meeting Room, etc.

  • Industries: Government, Public Security, Finance, Telecomm, Energy & Utility, Oil & Gas, Transportation, Aviation, Military & Defense, Armed Force, Smart City, Broadcasting, Sea Port, Offshore, Enterprise, etc.

Specification of 4K KVM Transmitter-DVI+DVI LOOP

Video PortDVI INx2, DVI LOOP OUT x2
Audio Port3.5 mm Analog INx2
Control PortRS232 x2, RS485 x2, IR/IO x4, USB2.0 x2
Communication PortFiber SFP x4
Resolution3840x2160 4:4:4 and downward compatibility
Image ProcessingAdvanced FPGA
ProtocolHDCP, HDMI2.0, HDMI 1.4 compatible with DVI 1.0
Bandwidthup to 12 GB per channel
Transmission Distanceup to 20 km over fiber optic
Audio Controlaudio matrix switching, audio mixing, embed and de-embed feature.
Power Supply12V 2.6A Adapter, power redundancy available
Power Supply: 12V 2.6A Adapter, power redundancy available


Highlights of 4K KVM Transmitter-DVI+DVI LOOP

Highlights of 4K KVM Transmitter-DVI+DVI LOOP

Transmit uncompressed UHD video in original image quality and nearly 0 latency with 12G bandwidth

Highlights of 4K KVM Transmitter-DVI+DVI LOOP

Distributed computing technology, no need additional server to process signal

Highlights of 4K KVM Transmitter-DVI+DVI LOOP

Flexible to configure as transmitter for a KVM matrix, KVM extender or video wall controller.

Highlights of 4K KVM Transmitter-DVI+DVI LOOP

Redundant power supply by 12V 2.6 A PSU for 24/7 operation

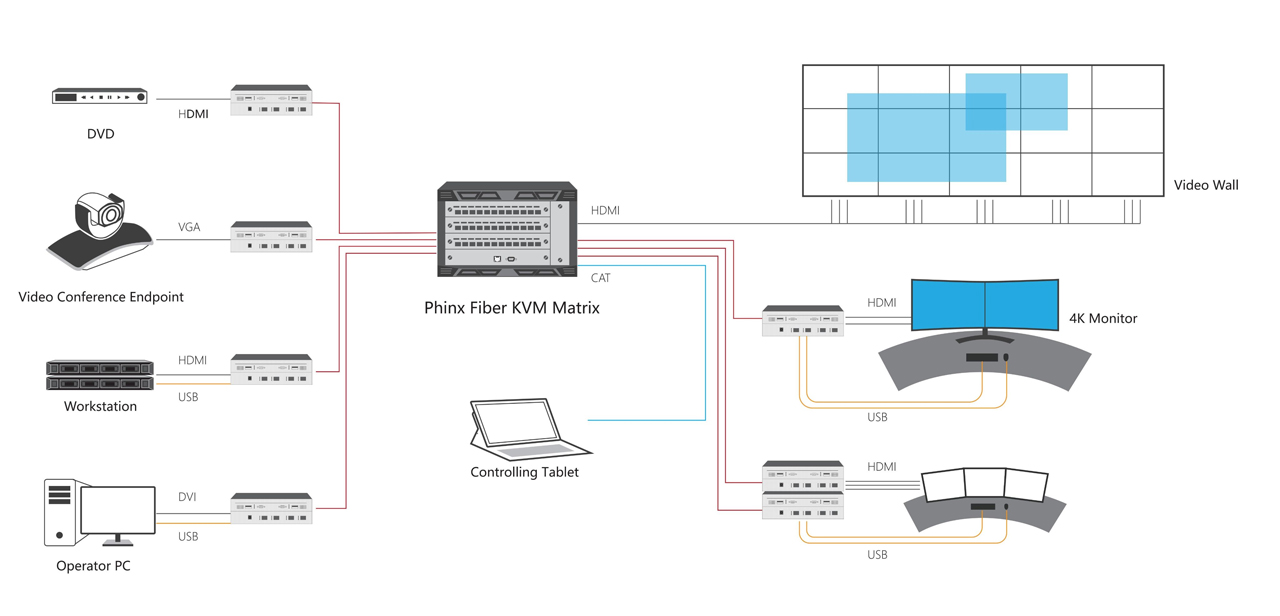

Schematic of Fiber KVM Matrix

Schematic of Fiber KVM Matrix zoom in
Schematic of Fiber KVM Matrix

Demo Video about Fiber KVM Matrix

Demo Video about Fiber KVM Matrix
