AI NVR s

AVCiT 32CH AI CSN

A smart search platform, serves as a unified access hub for all sources. Equipped with multimodal AI algorithms, it provides quick recording, smart searching and precise analysis via instant text -video footage retrieval.

Applications: Smart Construction Site, Smart Mining, Smart City, Smart Traffic Management, Secure Community, Smart Shopping Mall, Smart Factory etc.


Request A Solution
Specification
Highlights
Schematic
Video

Specification of 32-CH AI CSN


Hardware Spec.MemoryLPDDR4X:Default 8/16GB (for multi-algorithm use/ high-load scenarios）
CPUOcta-core Cortex-A55, up to 1.7GHz
NPU72.0Tops@int4, or18.0Tops@int8
Storage spaceBuilt-ineMMC:64GB
Disk space2-slot design (up to 20Tb per slot）
Scalable up to 4 slot (customized chassis required)
RS2322
RS4851
USB 2.01
USB 3.02
Audio input1
Audio output1
Video PortHDMI OUT x1
I/O Port4
Power Adapter PortDC 12V/1A x1
Relay Port
CAN Port
Network PortRJ45 x1
Other ParametersPower AdapterDC 12V/4A
Power Rate＜15W (excluded hard disk)
Dimension220 (L) x 140(W) x 38(H) mm
Installation WayRack Mount


Highlights of 32-CH AI CSN

Highlights of 32-CH AI CSN

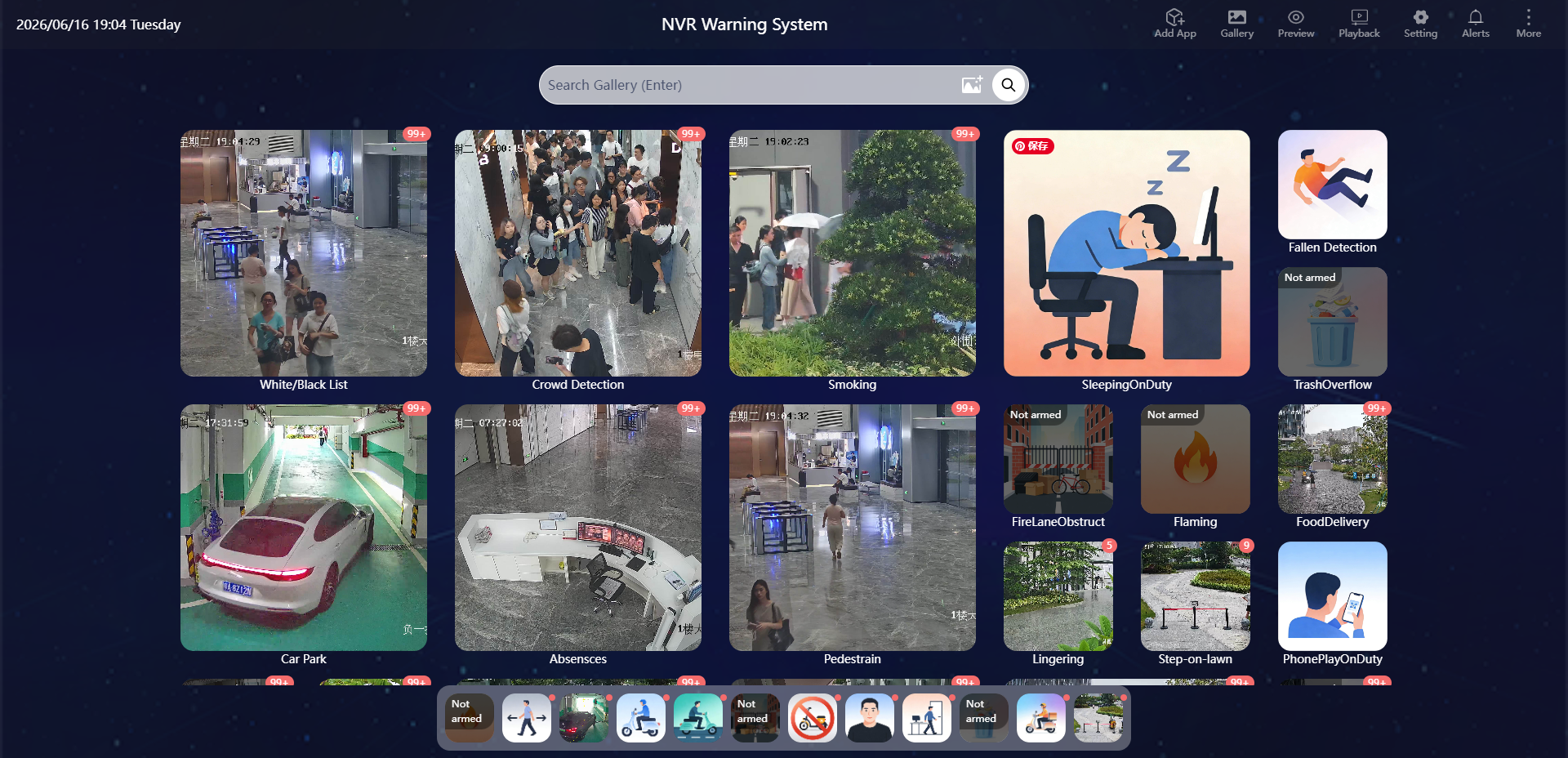

FLEXIBLE DASHBOARD CONFIGURATION

A tile-based desktop layout with customizable icons; flexibly time slot and virtual detection zones setting by algorithms or connected camera for quick deployment and real-time alert refreshing

Highlights of 32-CH AI CSN

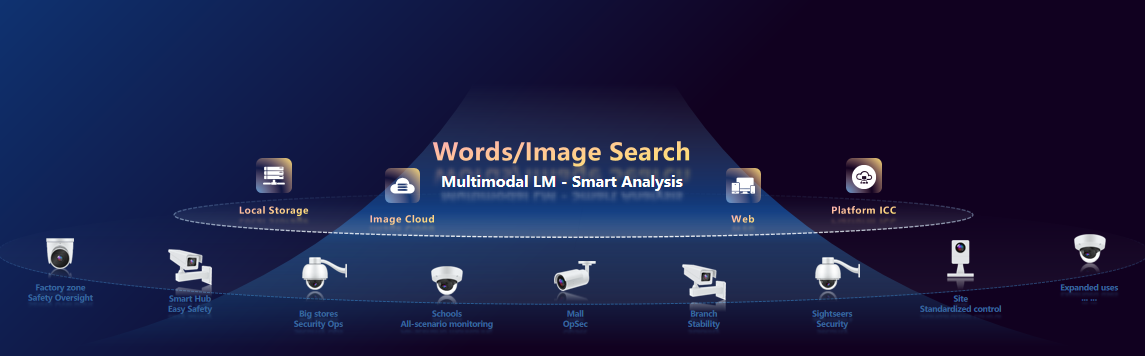

SMART MULTIMODAL RETRIEVAL

Intelligent searching via keywords(natural language) or image, quick locating events footage by target object, attribute, behavior, etc


Highlights of 32-CH AI CSN

Event-Driven Instant Playback

Event-centric design enables one-click access to associated footage and boosts efficiency for incident tracing and verification


Highlights of 32-CH AI CSN

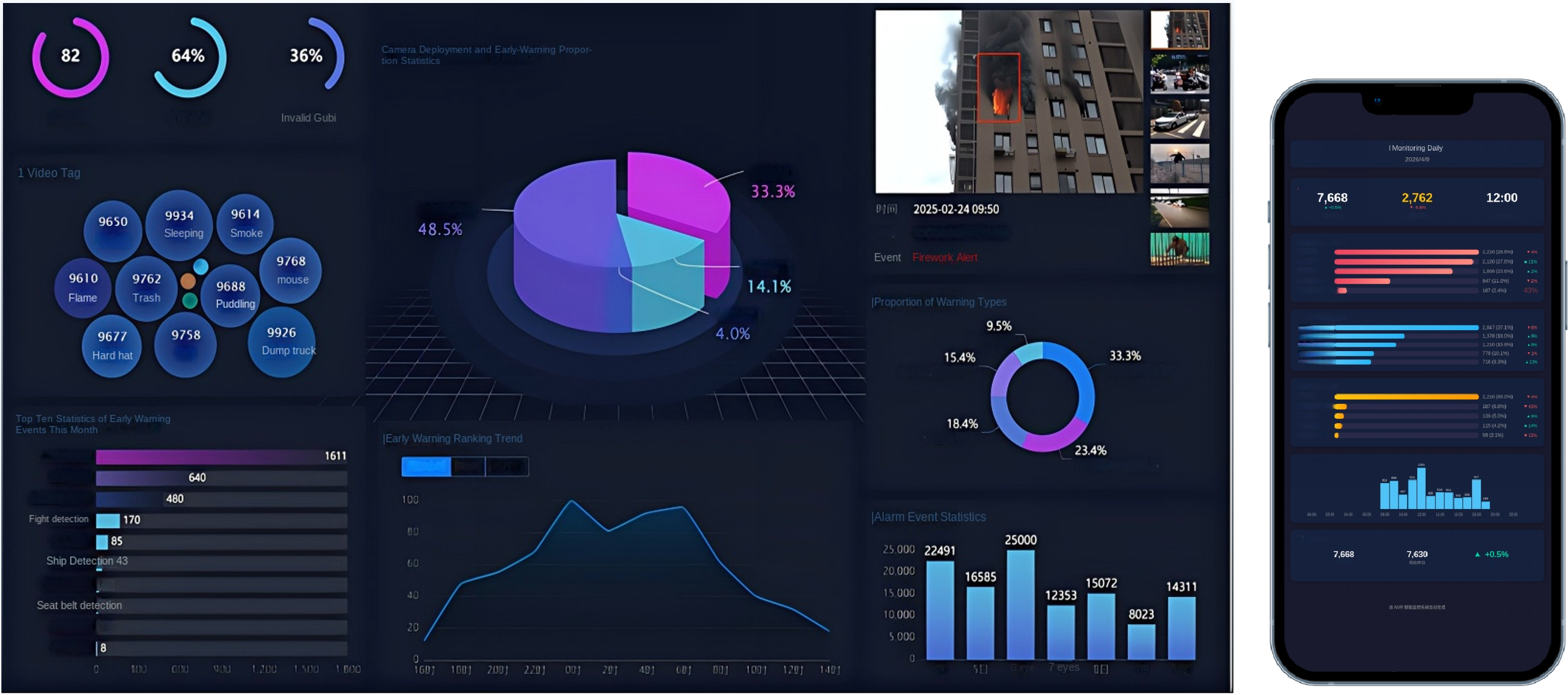

Full-Screen & Multi-View Incident Review

Supports immersive full-screen viewing or multi-view cycling of original recordings, balancing detail inspection with full situational awareness


Products
AI Edge Computing Solutions
AI Box
AIVC-16CH AI BOX AIVC-32CH AI BOX
AI CSN
32CH AI CSN
IP Based Video Wall Controller - DSII
2K Video Wall Controller
2K HDMI Video Codec 2K DVI Video Codec 2K SDI Video Codec 2K HDMI Video Encoder 2K DVI Video Encoder 2K SDI Video Encoder 2K VGA Video Encoder 2K Video Wall Decoder (HDMI+DVI)
4K Video Wall Controller
4K HDMI Video Encoder 4K HDMI + DP Video Encoder 4K HDMI Video Decoder 4K HDMI Video Wall Decoder 4K HDMI + DVI Video Wall Decoder 4K HDMI Dual Channel Codec 8K HDMI Decoder
IP Based KVM - DSIII
AVCiT 2K KVM Over IP
2K KVM Encoder - HDMI 2K KVM Encoder - DVI 2K KVM Encoder - SDI 2K KVM Encoder - DVI-I(VGA) 2K KVM Decoder - HDMI
AVCiT 4K KVM Over IP
4K KVM Encoder - HDMI + DP 4K@60 KVM Encoder - HDMI 4K KVM Encoder - HDMI + HDMI 4K KVM Encoder - HDMI 4K KVM Decoder - HDMI
4K60 4:4:4 KVM Over IP
4K60 4:4:4 KVM Encoder - HDMI 4K60 4:4:4 KVM Decoder-HDMI 4K60 4:4:4 KVM Encoder - HDMI + SDI 4K60 4:4:4 KVM Decoder - HDMI + SDI
5K KVM over IP
5K KVM Decoder - HDMI +DP
Fiber KVM Matrix - Phinx
Fiber KVM Matrix
Phinx-36 Ports Fiber KVM Matrix Phinx-72 Ports Fiber KVM Matrix Phinx-144 Ports Fiber KVM Matrix Phinx-288 Ports Fiber KVM Matrix Phinx-576 Ports Fiber KVM Matrix Phinx - I/O SFP Module Card Phinx - Video Wall Control Card Phinx- Video Wall & SFP Card Phinx- Video Card(6IN6OUT)
KVM Transmitter and Receiver Node
4K KVM Transmitter-HDMI 4K KVM Transmitter-HDMI+HDMI LOOP 4K KVM Transmitter-DVI 4K KVM Transmitter-DVI+DVI LOOP 4K60 KVM Transmitter - HDMI 2K KVM Transmitter-VGA 4K KVM Receiver-HDMI 4K KVM Receiver-DVI Quad-view KVM Receiver-HDMI 4K60 KVM Receiver - HDMI 4K60 Quad-view KVM Receiver 2K KVM Receiver-HDMI 2K KVM Receiver-DVI 2K KVM Receiver-VGA
Video Wall Matrix Switch - Mixing
Mixing - 2K Video Wall Matrix Switcher
2K Video Wall Matrix - 8x8 2K Video Wall Matrix - 16x16 2K Video Wall Matrix - 32x32 2K Video Wall Matrix - 72x72 2K Video Wall Matrix - 144x144
Mixing - 4K Modular Matrix Switcher
4K Video Matrix Switcher - 8x8 4K Video Matrix Switcher - 36x36 4K Video Matrix Switcher - 72x72 4K Video Matrix Switcher - 144x144
Mixing - 2K Input/Output Module (4 channel)
Mixing HD-2K HDMI Input Card Mixing HD-2K DVI Input Card Mixing HD-2K SDI Input Card Mixing HD-2K VGA Input Card Mixing HD-2K AV Input Card Mixing HD-HDMI UHD Input Card Mixing HD-Fiber Input Card Mixing HD-IP Input Card Mixing HD-HDMI Output Card Mixing HD-DVI Output Card Mixing HD-SDI Output Card Mixing HD-VGA Output Card Mixing HD-AV Output Card Mixing HD-Fiber Output Card Mixing HD-IP Output Card Mixing HD-HDMI Video Wall Control Card (2 channel) Mixing HD-HDMI Video Wall Control Card (1 channel) Mixing HD-DVI Video Wall Control Card (2 channel) Mixing HD-DVI Video Wall Control Card (1 channel)
Mixing - 4K Input/Output Module (2 channel)
Mixing UHD - HDMI Input Card Mixing UHD - DVI Input Card Mixing UHD - SDI Input Card Mixing UHD - VGA Input Card Mixing UHD - AV Input Card Mixing UHD - HDBT Input Card Mixing UHD - Fiber Input Card Mixing UHD - HDBT Output Card Mixing UHD - HDMI Output Card Mixing UHD - DVI Output Card Mixing UHD - SDI Output Card Mixing UHD - VGA Output Card Mixing UHD - AV Output Card Mixing UHD - Fiber Output Card
Extender
Mixing UHD - 4K HDBT Extender Mixing UHD - 4K Fiber Extender
Optional Platform/Software for DS.X
Environment Controller
Operation & Maintenance Platform
KVM User Logs Software
Mounting Kits
Rack Mounting Kit Wall Mounting Kit

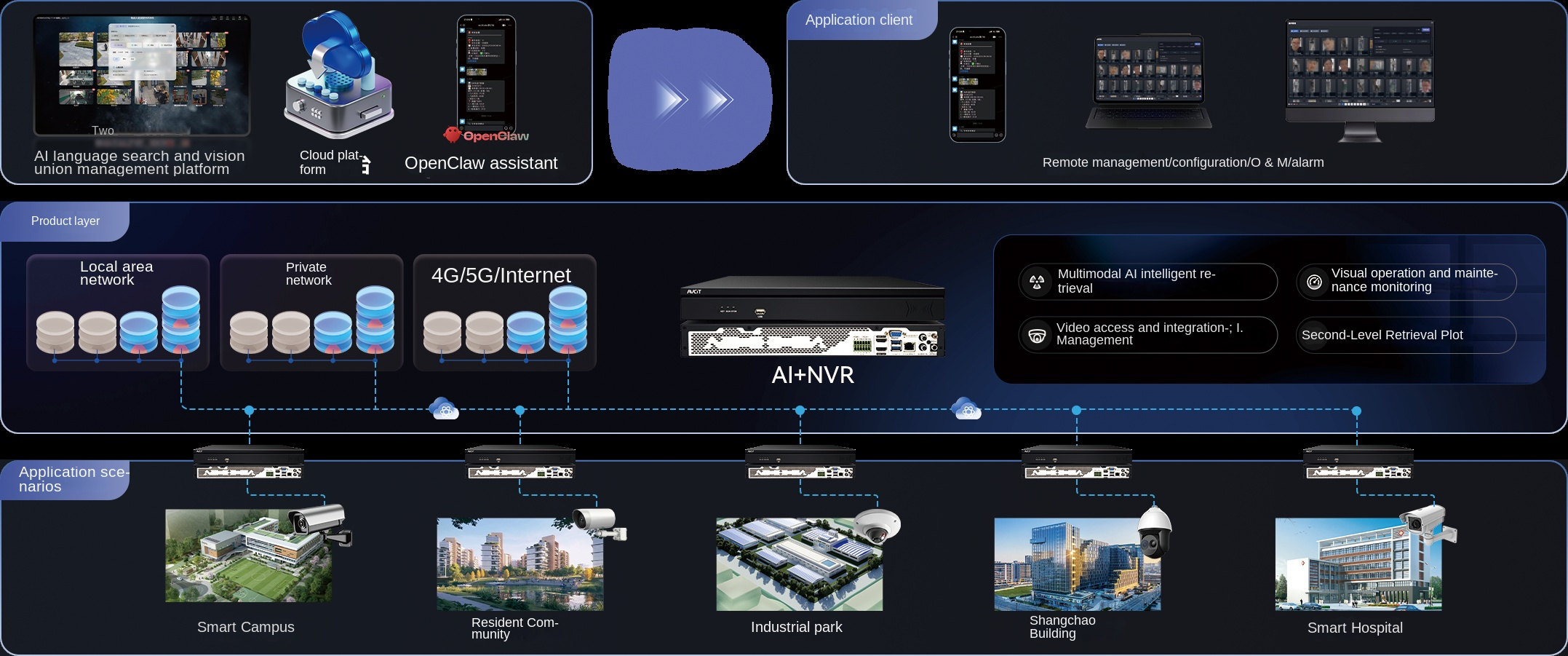

Schematic of AI CSN-32CH

Schematic of AI CSN-32CH zoom in
Schematic of AI CSN-32CH

Demo Video about AI CSN

Demo Video about AI CSN
