4k kvm decoder

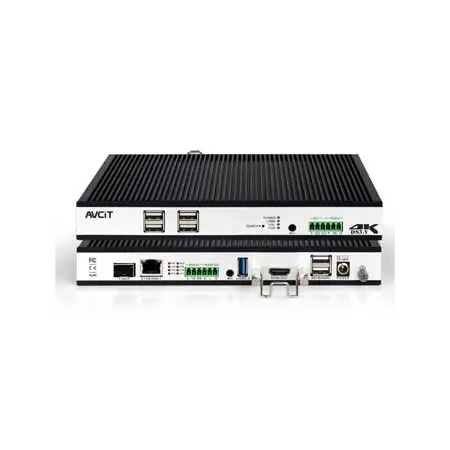

AVCiT 4K KVM Decoder - HDMI

The H.265 based DSIII 4K KVM Decoder (HDMI) is designed to receive UHD video + USB-HID + RS232/485 + IR over standard 1GB IT network, with low latency and high image quality. It would be configured as a KVM Decoder to combine as an integrated and visualized Video Wall Controller & KVM over IP System.
  • Applications: Control Room, Network Operation Center (NOC), Security Operation Center (SOC), Emergency Operation Center (EOC), Joint Operation center(JOC), Airport Operation Center(AOC), Traffic Operation Center(TOC), Board Room, Meeting Room etc.

  • Industries: Government, Public Security, Finance, Telecomm, Energy & Utility, Oil & Gas, Transportation, Aviation, Military & Defense, Armed Force, Smart City, Broadcasting, Sea Port, Offshore, Enterprise etc.


Specification of 4K KVM Decoder - HDMI

Video Port

HDMI OUTx1

USB Port

USB2.0 x2

Audio Port

MIC x1

Control Port

RS232 x1, IO/IR x1

Network Port

RJ45x1, Fiber Optic x1

Resolution

Support 3840x2160p and downward compatibility

Protocol

H.265/H.264, RTSP, ONVIF, HDCP and HDMI 2.0 compatible with DVI 1.0

Bandwidth

4~20 Mpbs configurable for per streaming

Transmission Distance

90 meters over CAT6 cable or 10 km over fiber

Audio Control

audio matrix switching, audio mixing, embed and de-embed feature.

Power Supply

PoE (802.3 AT) or 5V 3A Power Adapter


Highlights of 4K KVM Decoder - HDMI

Highlights of 4K KVM Decoder - HDMI

In-built OSD interface to view and control the source PC, no need additional software.


Highlights of 4K KVM Decoder - HDMI

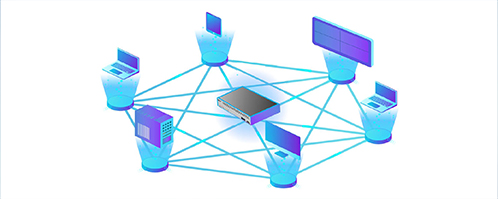

Available to decode and control multiple source from different KVM encoders at same time.


Highlights of 4K KVM Decoder - HDMI

Compatible with both wired and wireless keyboard mouse or interative monitor with mult-touch feautre.


Highlights of 4K KVM Decoder - HDMI

Two-way audio and USB camera transmission for making video call between operators.


Highlights of 4K KVM Decoder - HDMI

Distributed computing technology, no need additional server to process signal.


Highlights of 4K KVM Decoder - HDMI

Redundant power supply by both PSU and POE available.


Schematic of Combining as Video Wall Controller & KVM Over IP System

Schematic of Combining as Video Wall Controller & KVM Over IP System zoom in
Schematic of Combining as Video Wall Controller & KVM Over IP System

Demo Video about 4K KVM over IP

Demo Video about 4K KVM over IP
