Hdmi Matrix Switcher

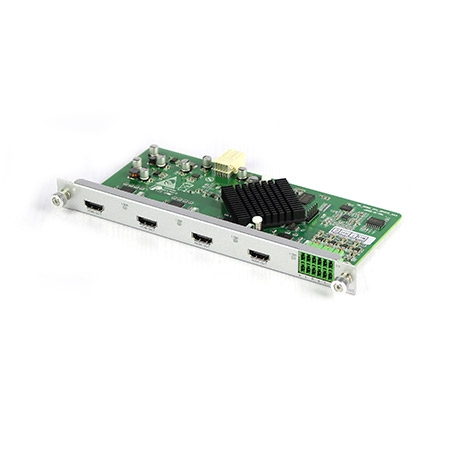

Mixing HD-HDMI Output Card

2K HDMI Output Card is 4 channel HDMI output card for 2K MIX Series Modular & Digital Matrix Switchers; With functions of seamless switching, original image quality and ultra-low latency.
  • Applications: Control Room, Board Room, Meeting Room, Hotel, Restaurant, School Class Room, Auditorium etc.


Specification of Mixing HD-HDMI Output Card

Resolution

1920x1200@60 4:4:4 RGB or 4:2:2 YUV and downward compatibility

Image Processing

Advanced FPGA

Output Port

HDMIx4, could modifed to be DVI

Interace

HDMI type A female

Audio Port

12 digits Phoenix Audio out


Schematic of 2K Video Wall Matrix Switcher

Schematic of 2K Video Wall Matrix Switcher zoom in
Schematic of 2K Video Wall Matrix Switcher

Demo Video about 2K Video Wall Matrix Switcher

Demo Video about 2K Video Wall Matrix Switcher
