2K SDI Video Encoder

2K SDI Video Encoder

The H.265 based 2K DVI Video Encoder node is designed to transmit FHD video + UDP + RS232/485 + IR over standard 1GB IT network, with low latency and high image quality. It could be configured as an encoder for an integrated and visualized Video Wall Controller & KVM over IP System.
  • Applications: Control Room, Network Operation Center (NOC), Security Operation Center (SOC), Emergency Operation Center (EOC), Joint Operation center(JOC), Airport Operation Center(AOC), Traffic Operation Center(TOC), Board Room, Meeting Room etc.

  • Industries: Government, Public Security, Finance, Telecomm, Energy & Utility, Oil & Gas, Transportation, Aviation, Military & Defense, Armed Force, Smart City, Broadcasting, Sea Port, Offshore, Enterprise etc.


Specification of 2K SDI Video Encoder

Video Interface Port

SDI INx1, SDI LOOP OUT x1, HDMI LOOP OUTx1

Audio Interface Port

AUDIO INx1, AUDIO OUTx1

Control Interface Port

RS232 x1, RS485 x1, IO/IR x3

Resolution

up to1920x1080p@60

Protocol

H.265/264, RTSP, HDCP and HDMI 1.4 compatible with DVI 1.0

Bandwidth

4~20 Mbps configurable per streaming

Transmission Distance

90m over CAT6 cable, 10km over fiber

Audio Control

audio matrix switching, audio mixing, embed and de-embed feature.

Power Supply

PoE (802.3 AT) or 5V 3A Power Adapter


Highlights of 2K SDI Video Encoder

Highlights of 2K SDI Video Encoder

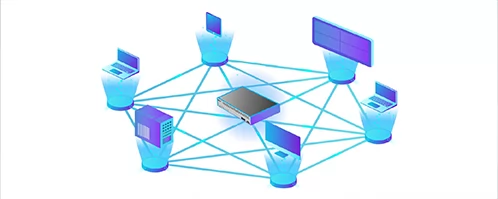

Distributed computing technology, no need for additional server.


Highlights of 2K SDI Video Encoder

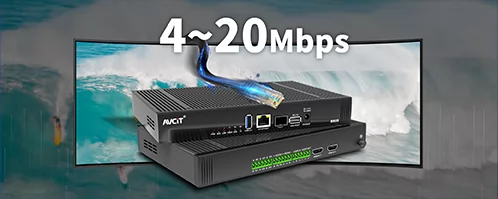

Transmit HD video in low latency over configurable bandwidth of 4-20 Mbps.


Highlights of 2K SDI Video Encoder

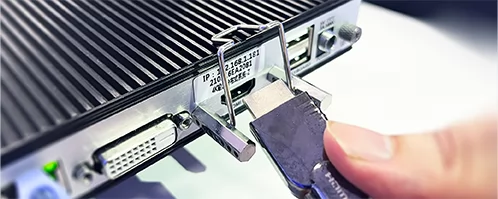

Plug & play and support hot-swap.


Highlights of 2K SDI Video Encoder

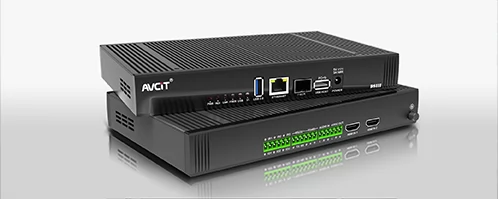

Fanless chassis with Extreme cooling performance.


Highlights of 2K SDI Video Encoder

Redundant power supply by both PSU and POE available.

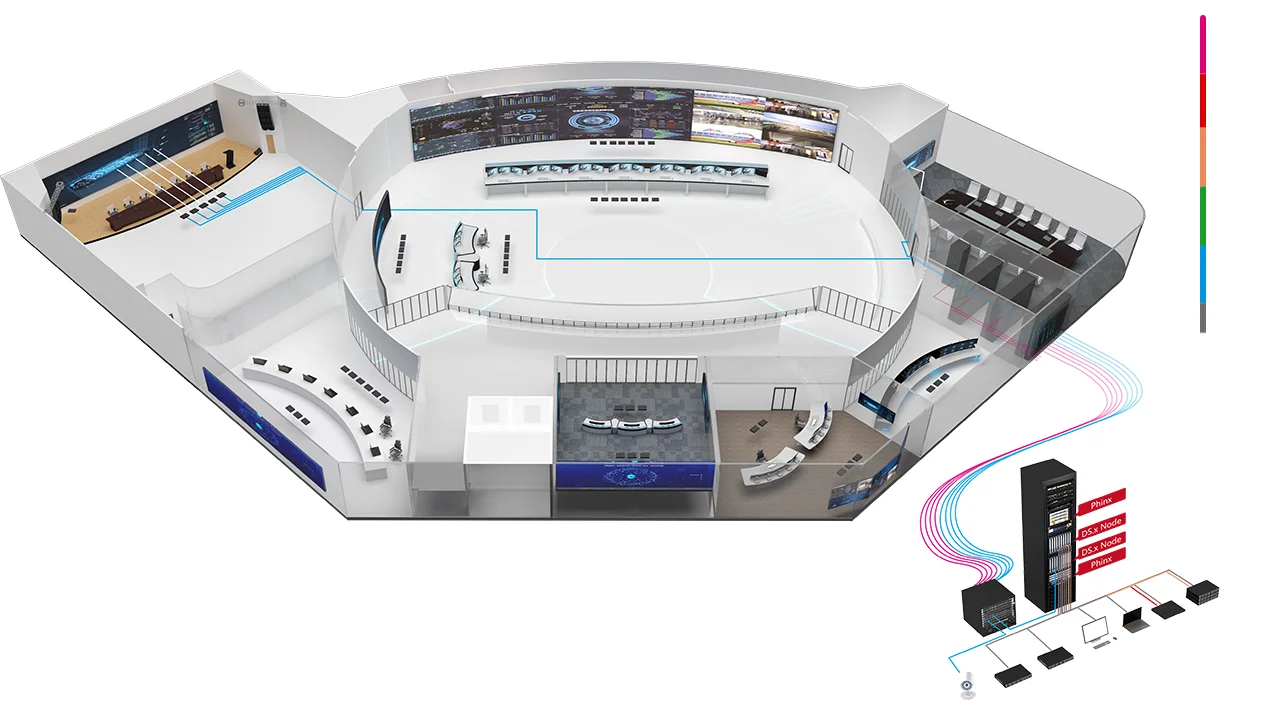

Schematic of Combining as Video Wall Controller & KVM Over IP System

Schematic of Combining as Video Wall Controller & KVM Over IP System zoom in
Schematic of Combining as Video Wall Controller & KVM Over IP System

Demo Video about 2K Video Wall Controller over IP

Demo Video about 2K Video Wall Controller over IP
