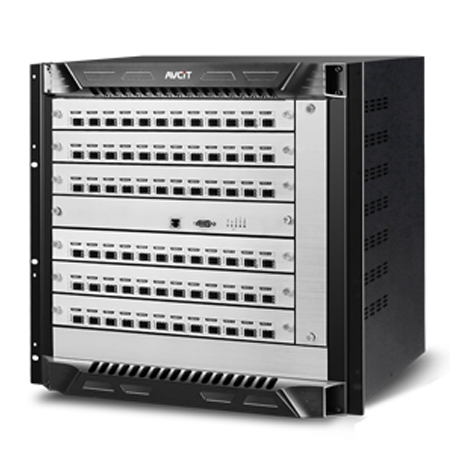

Specification of Phinx-72 Ports Fiber KVM Matrix
|Resolution||Support 3840x2160@60 and downward compatibility|
|Image Processing||Advanced FPGA|
|Channel Amount||max. 72 channels by auto-recognize Fiber I/O port|
|Bandwidth||up to 12 GB per channel|
|Communication Port||RS232 x1, RJ45x1|
|Protocol||SNMP, RS232, UDP|
|Transmission Distance||Transmit audio, video, control signals over fiber optic up to 20km.|
|Power Supply||110-220V PSU, power redundancy available|
|Dimension||485x412x442 mm, racked by standard rack|
Highlights of Phinx-72 Ports Fiber KVM Matrix
Reliable redundancy with automatic takeover feature between main and backup matrix host.
Seamless switching, no black screen, no re-synchronization, no delay, scalable resolution.
Flexible to configure as a KVM matrix, KVM extender or video wall controller.
Fully cross-point matrix switching, Auto-recognizable port for input or output signal
