AVCiT 4K Video Matrix Switcher - 18x18

AVCIT MIX Series 4K Modular Matrix switcher is designed for routing multiple audio and video signals to multiple displays and video walls, which is mainly used in large command centres, government video conferencing, large screen display engineering, dispatch centres etc.
  • There are 5 configurable matrix chassis/enclosures, HD1818-4K is the enclosure for Video Matrix Switcher - 18x18


Specification of 4K Video Matrix Switcher - 18x18

Image Processing

Full Advanced FPGA architecture

Bandwidth

up to 6 Gbps per channel

Resolution

Support 3840x2160@60 and downward compatibility

Video format

HDMI, DVI, VGA, SDI, AV, IP, H.265/H.264, HD-BaseT

Maximum presets

18

Power-down memory

Yes

Power-off site protection

Yes

Channel

max. 18 channels IN & 18 channels OUT

Communication Port

RS232 x1,  RJ45x1

Protocol

HDMI 2.0 (part), HDCP, DVI 1.0, RS232, UDP

Transmission Distance

120m over CAT6, 20km over fiber optic

Power Supply

redundancy110-220V PSU,

Dimension

483x300x177mm, 19" rack-mounted

Highlights of 4K Video Matrix Switcher - 18x18

Highlights of 4K Video Matrix Switcher - 18x18

Modular video matrix architecture, Flexible & Configurable


Highlights of 4K Video Matrix Switcher - 18x18

Seamless switching with no Black screen


Highlights of 4K Video Matrix Switcher - 18x18

hot-swappable I/O card and PSU


Highlights of 4K Video Matrix Switcher - 18x18

Compatible with 3rd party controller

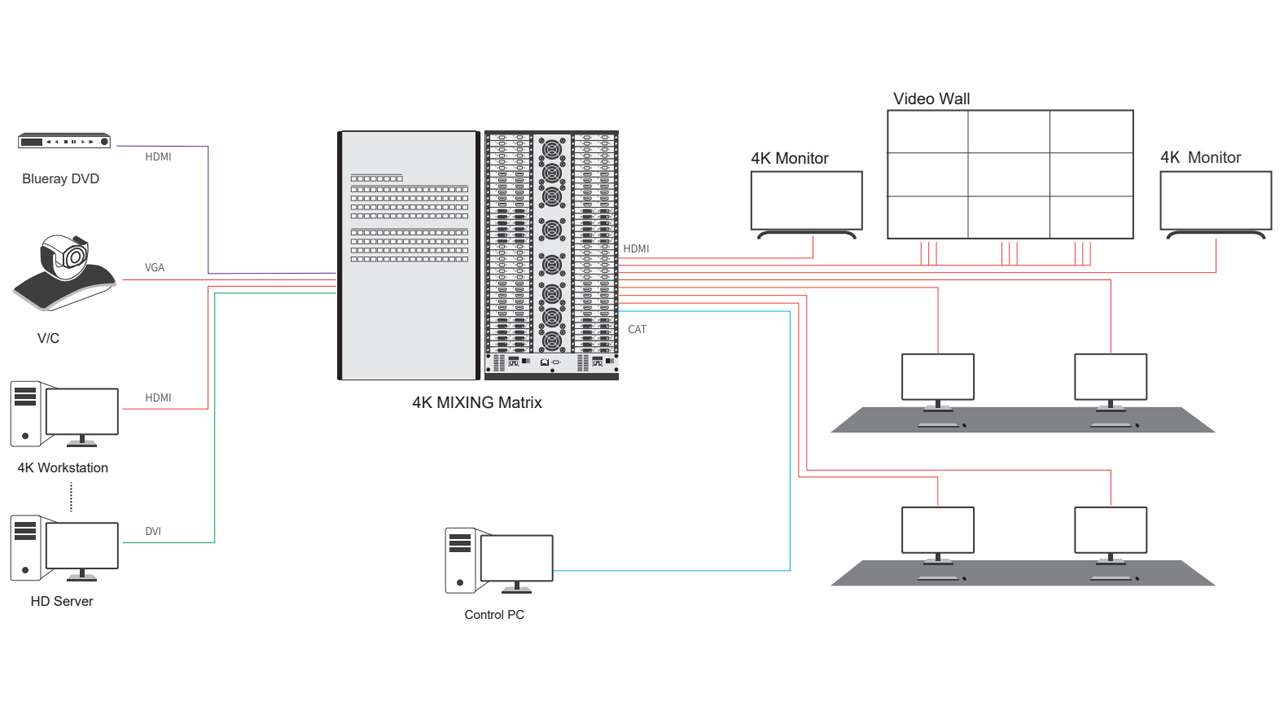

Schematic of 4K Video Matrix Switcher - 18x18

Schematic of 4K Video Matrix Switcher - 18x18 zoom in
Schematic of 4K Video Matrix Switcher - 18x18

Video of 4K Video Matrix Switcher - 18x18

Video of 4K Video Matrix Switcher - 18x18
