conference microphone unit d43 series chairman and delegate unit

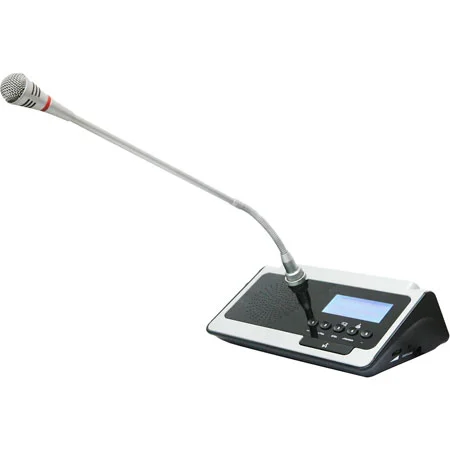

AVCiT Conference Microphone unit-D43 series chairman and delegate unit

AVCIT D4312 and D4313 is speech and voting unit with LED display, D4312 is speech unit for chairman, while D4313 is speech unit for delegate, simply push and talk. Speaker and headphone jack built-in,...

AVCIT D4312 and D4313 is speech and voting unit with LED display, D4312 is speech unit for chairman, while D4313 is speech unit for delegate, simply push and talk. Speaker and headphone jack built-in, with volume control knob, DSP processing ensure high-fidelity voice, compact and stylish.

Request A Solution
Specificaiton
Feature
Schematic

Specificaiton of D43 series

Power                  DC24V

Unit interface     DIN8P interface

Power                  3W

Headset output  9dBu,8-32Ω,3.5mm mini jack

Speaker power  2W

Microphone       Capacitive diaphragm Point  heart-shaped

S/N                      >80dB

Crosstalk attenuation  >80dB

Distortion                      <0.10%

Frequency response   60-8kHz

Equivalent noise          ≈20dBSPL

Maximum SPL              105dB(3% threshold)

Sensitivity                     -22dBv/Pa

Dimensions                  213*145*70mm

Color                             Silver Black


Feature of Microphone unit D43 series

Feature of Microphone unit D43 series

Exquisite and elegant desktop style, with LED displaying the name of speaker

Built-in speaker and headphone jack, with volume control knob;


Feature of Microphone unit D43 series

Removable microphone with circular LED indicator on while speech,

Push and talk, with feature of howling suppression, Built-in speakers automatically shut down while pushing and talking;

Chairman unit has priority to talk and shut down all delegate units .


Feature of Microphone unit D43 series

Powered by conference console, input voltage 24V.

With AVCIT’s 8-PIN DCN cable, greatly reduces the interference of electromagnetic;

Chairman unit can be anyplace;


Feature of Microphone unit D43 series

Connected in series, easy to install and maintain;

3 voting modes available, Mode 1 voting: YES/NO/Abstain, Mode 2 Election survey: 1/2/3/4/5, Mode 3 comments: 0/+/++


Products
IP Based Video Wall Controller - DSII
2K Video Wall Controller
2K HDMI Video Codec 2K DVI Video Codec 2K SDI Video Codec 2K HDMI Video Codec - Table/Floor Version 2K DVI Video Codec - Table/Floor Version 2K HDMI Video Encoder 2K DVI Video Encoder 2K SDI Video Encoder 2K VGA Video Encoder 2K Video Wall Decoder (HDMI+DVI)
4K Video Wall Controller
4K HDMI Video Encoder 4K HDMI + DP Video Encoder 4K HDMI Video Decoder 4K HDMI Video Wall Decoder 4K HDMI + DVI Video Wall Decoder
IP Based KVM - DSIII
AVCiT 2K KVM Over IP
2K KVM Encoder - HDMI 2K KVM Encoder - DVI 2K KVM Encoder - SDI 2K KVM Encoder - DVI-I(VGA) 2K KVM Decoder - HDMI
AVCiT 4K KVM Over IP
4K KVM Encoder - HDMI + DP 4K KVM Encoder - HDMI + HDMI 4K KVM Encoder - HDMI 4K KVM Decoder - HDMI 4K KVM Decoder - HDMI + DVI
Fiber KVM Matrix - Phinx
Fiber KVM Matrix
Phinx-36 Ports Fiber KVM Matrix Phinx-72 Ports Fiber KVM Matrix Phinx-144 Ports Fiber KVM Matrix Phinx-288 Ports Fiber KVM Matrix Phinx-576 Ports Fiber KVM Matrix Phinx - I/O SFP Module Card Phinx - Video Wall Control Card
KVM Transmitter and Receiver Node
4K KVM Transmitter-HDMI 4K KVM Transmitter-HDMI+HDMI LOOP 4K KVM Transmitter-DVI 4K KVM Transmitter-DVI+DVI LOOP 2K KVM Transmitter-VGA 4K KVM Receiver-HDMI 4K KVM Receiver-DVI Quad-view KVM Receiver-HDMI 2K KVM Receiver-HDMI 2K KVM Receiver-DVI 2K KVM Receiver-VGA
Video Wall Matrix Switch - Mixing
Mixing - 2K Video Wall Matrix Switcher
2K Video Wall Matrix - 8x8 2K Video Wall Matrix - 16x16 2K Video Wall Matrix - 32x32 2K Video Wall Matrix - 72x72 2K Video Wall Matrix - 144x144
Mixing - 4K Modular Matrix Switcher
4K Video Matrix Switcher - 8x8 4K Video Matrix Switcher - 18x18 4K Video Matrix Switcher - 36x36 4K Video Matrix Switcher - 72x72 4K Video Matrix Switcher - 144x144
Mixing - 2K Input/Output Module (4 channel)
Mixing HD-2K HDMI Input Card Mixing HD-2K DVI Input Card Mixing HD-2K SDI Input Card Mixing HD-2K VGA Input Card Mixing HD-2K AV Input Card Mixing HD-HDMI UHD Input Card Mixing HD-Fiber Input Card Mixing HD-IP Input Card Mixing HD-HDMI Output Card Mixing HD-DVI Output Card Mixing HD-SDI Output Card Mixing HD-VGA Output Card Mixing HD-AV Output Card Mixing HD-Fiber Output Card Mixing HD-IP Output Card Mixing HD-HDMI Video Wall Control Card (2 channel) Mixing HD-HDMI Video Wall Control Card (1 channel) Mixing HD-DVI Video Wall Control Card (2 channel) Mixing HD-DVI Video Wall Control Card (1 channel)
Mixing - 4K Input/Output Module (2 channel)
Mixing UHD - HDMI Input Card Mixing UHD - DVI Input Card Mixing UHD - SDI Input Card Mixing UHD - VGA Input Card Mixing UHD - AV Input Card Mixing UHD - HDBT Input Card Mixing UHD - Fiber Input Card Mixing UHD - HDBT Output Card Mixing UHD - HDMI Output Card Mixing UHD - DVI Output Card Mixing UHD - SDI Output Card Mixing UHD - VGA Output Card Mixing UHD - AV Output Card Mixing UHD - Fiber Output Card
Extender
Mixing UHD - 4K HDBT Extender Mixing UHD - 4K Fiber Extender
Optional Platform/Software for DS.X
Environment Controller
Operation & Maintenance Platform
KVM User Logs Software
Mounting Kits
Rack Mounting Kit Wall Mounting Kit
Digital Conference Discussion System
Conference Controller
Conference Controller-C3101
Chairman/Delegate Unit
Confrence Microphone Units-D41 series chairman and delegate unit Conference Microphone units-D44 series chairman and delegate unit Conference Microphone unit-D43 series chairman and delegate unit Conference Microphone unit-E30 series chairman and delegate unit

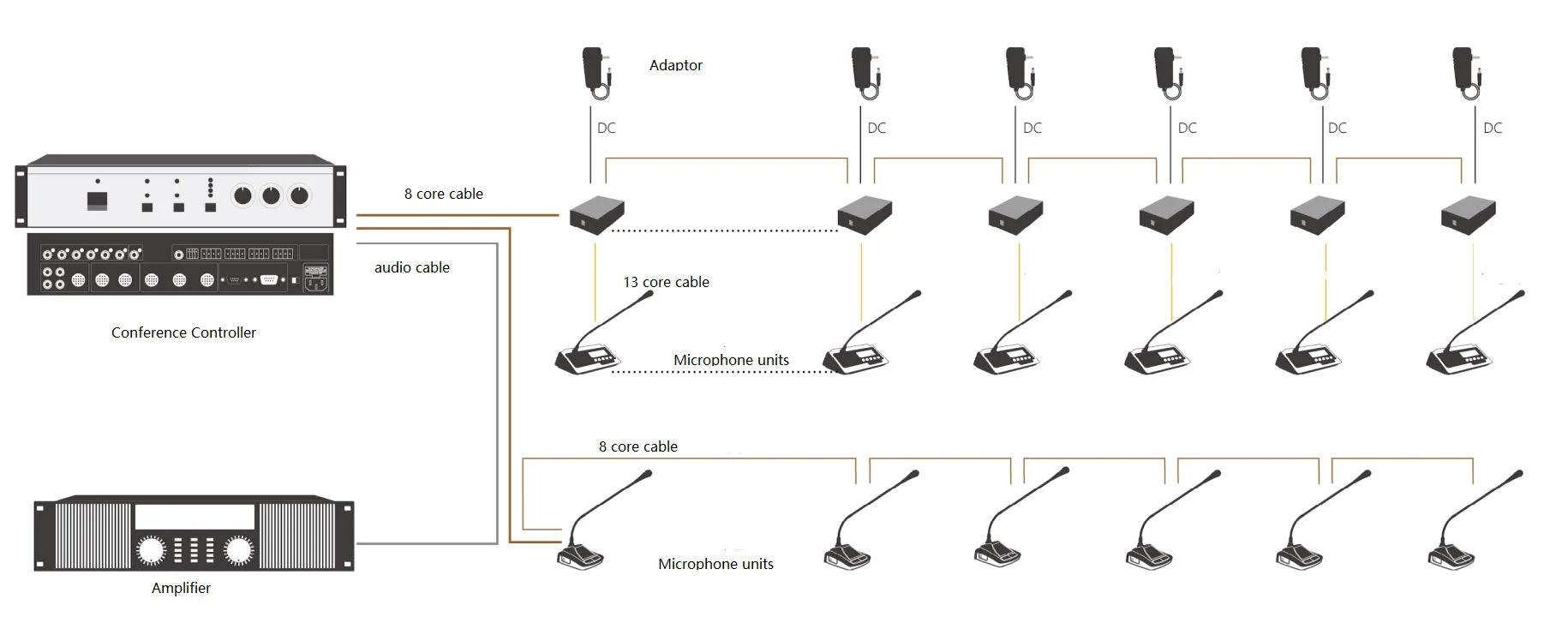

Schematic of Conference system

Schematic of Conference system zoom in
Schematic of Conference system
Contact Us
We're here to help with the ip video wall controller solutions for your business

Related Products of Chairman/Delegate Unit

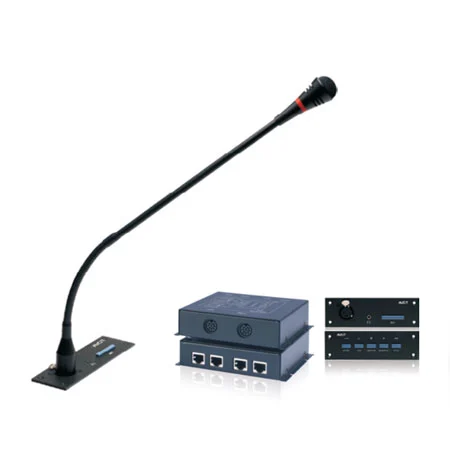

Conference Microphone unit-E30 series chairman and delegate unit
Conference Microphone unit-E30 series chairman and delegate unit

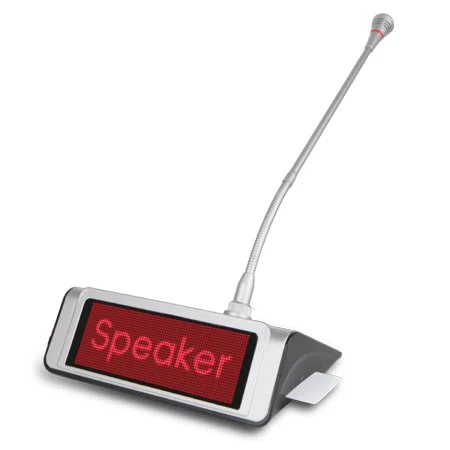

Conference Microphone units-D44 series chairman and delegate unit
