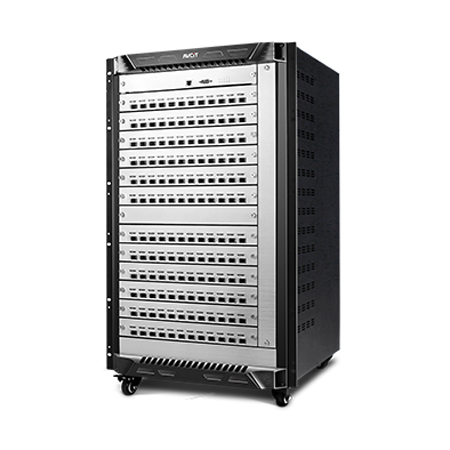

144-port Fiber KVM Matrix

AVCiT Phinx-144 Ports Fiber KVM Matrix

AVCiT Fiber KVM Collaboration System (non-IP) is based on distributed and scalable architecture with optional features, which can be configured as a KVM matrix, KVM switch, KVM extender, video wall controller or all of them in same system. By its advanced features and uncompressed image transmission with redundancy features to transmit 4K@60 4:4:4 chroma images, the solution is add-value for control room, TOC, AOC in transportation, energy, aviation industries. There are 12 slots for Fiber Optic I/O module or Video Wall Control module by 144 Ports Fiber KVM Matrix
Request A Solution PDF Download
Specification
Highlights
Schematic
Video
Documents

Specification of Phinx-144 Ports Fiber KVM Matrix

ResolutionSupport 3840x2160@60 and downward compatibility
Image ProcessingAdvanced FPGA
Channel Amountmax. 144 channels by auto-recognize Fiber I/O port
Bandwidthup to 12 GB per channel
Communication PortRS232 x1,  RJ45x1
ProtocolSNMP, RS232, UDP
Transmission DistanceTransmit audio, video, control signals over fiber optic up to 20km.
Power Supply110-220V PSU, power redundancy available
Dimension485x387x531 mm, racked by standard rack


Highlights of Phinx-144 Ports Fiber KVM Matrix

Highlights of Phinx-144 Ports Fiber KVM Matrix

Reliable redundancy with automatic takeover feature between main and backup matrix host.

Highlights of Phinx-144 Ports Fiber KVM Matrix

Seamless switching, no black screen, no re-synchronization, no delay, scalable resolution.

Highlights of Phinx-144 Ports Fiber KVM Matrix

Flexible to configure as a KVM matrix, KVM extender or video wall controller.

Highlights of Phinx-144 Ports Fiber KVM Matrix

Fully cross-point matrix switching, Auto-recognizable port for  input or output signal

Products
AI Edge Computing Platform
AI Box
AIVC-16CH AI BOX AIVC-32CH AI BOX
IP Based Video Wall Controller - DSII
2K Video Wall Controller
2K HDMI Video Codec 2K DVI Video Codec 2K SDI Video Codec 2K HDMI Video Encoder 2K DVI Video Encoder 2K SDI Video Encoder 2K VGA Video Encoder 2K Video Wall Decoder (HDMI+DVI)
4K Video Wall Controller
4K HDMI Video Encoder 4K HDMI + DP Video Encoder 4K HDMI Video Decoder 4K HDMI Video Wall Decoder 4K HDMI + DVI Video Wall Decoder 4K HDMI Dual Channel Codec 8K HDMI Decoder
IP Based KVM - DSIII
AVCiT 2K KVM Over IP
2K KVM Encoder - HDMI 2K KVM Encoder - DVI 2K KVM Encoder - SDI 2K KVM Encoder - DVI-I(VGA) 2K KVM Decoder - HDMI
AVCiT 4K KVM Over IP
4K KVM Encoder - HDMI + DP 4K@60 KVM Encoder - HDMI 4K KVM Encoder - HDMI + HDMI 4K KVM Encoder - HDMI 4K KVM Decoder - HDMI
4K60 4:4:4 KVM Over IP
4K60 4:4:4 KVM Encoder - HDMI 4K60 4:4:4 KVM Decoder-HDMI 4K60 4:4:4 KVM Encoder - HDMI + SDI 4K60 4:4:4 KVM Decoder - HDMI + SDI
5K KVM over IP
5K KVM Decoder - HDMI +DP
Fiber KVM Matrix - Phinx
Fiber KVM Matrix
Phinx-36 Ports Fiber KVM Matrix Phinx-72 Ports Fiber KVM Matrix Phinx-144 Ports Fiber KVM Matrix Phinx-288 Ports Fiber KVM Matrix Phinx-576 Ports Fiber KVM Matrix Phinx - I/O SFP Module Card Phinx - Video Wall Control Card Phinx- Video Wall & SFP Card Phinx- Video Card(6IN6OUT)
KVM Transmitter and Receiver Node
4K KVM Transmitter-HDMI 4K KVM Transmitter-HDMI+HDMI LOOP 4K KVM Transmitter-DVI 4K KVM Transmitter-DVI+DVI LOOP 4K60 KVM Transmitter - HDMI 2K KVM Transmitter-VGA 4K KVM Receiver-HDMI 4K KVM Receiver-DVI Quad-view KVM Receiver-HDMI 4K60 KVM Receiver - HDMI 4K60 Quad-view KVM Receiver 2K KVM Receiver-HDMI 2K KVM Receiver-DVI 2K KVM Receiver-VGA
Video Wall Matrix Switch - Mixing
Mixing - 2K Video Wall Matrix Switcher
2K Video Wall Matrix - 8x8 2K Video Wall Matrix - 16x16 2K Video Wall Matrix - 32x32 2K Video Wall Matrix - 72x72 2K Video Wall Matrix - 144x144
Mixing - 4K Modular Matrix Switcher
4K Video Matrix Switcher - 8x8 4K Video Matrix Switcher - 18x18 4K Video Matrix Switcher - 36x36 4K Video Matrix Switcher - 72x72 4K Video Matrix Switcher - 144x144
Mixing - 2K Input/Output Module (4 channel)
Mixing HD-2K HDMI Input Card Mixing HD-2K DVI Input Card Mixing HD-2K SDI Input Card Mixing HD-2K VGA Input Card Mixing HD-2K AV Input Card Mixing HD-HDMI UHD Input Card Mixing HD-Fiber Input Card Mixing HD-IP Input Card Mixing HD-HDMI Output Card Mixing HD-DVI Output Card Mixing HD-SDI Output Card Mixing HD-VGA Output Card Mixing HD-AV Output Card Mixing HD-Fiber Output Card Mixing HD-IP Output Card Mixing HD-HDMI Video Wall Control Card (2 channel) Mixing HD-HDMI Video Wall Control Card (1 channel) Mixing HD-DVI Video Wall Control Card (2 channel) Mixing HD-DVI Video Wall Control Card (1 channel)
Mixing - 4K Input/Output Module (2 channel)
Mixing UHD - HDMI Input Card Mixing UHD - DVI Input Card Mixing UHD - SDI Input Card Mixing UHD - VGA Input Card Mixing UHD - AV Input Card Mixing UHD - HDBT Input Card Mixing UHD - Fiber Input Card Mixing UHD - HDBT Output Card Mixing UHD - HDMI Output Card Mixing UHD - DVI Output Card Mixing UHD - SDI Output Card Mixing UHD - VGA Output Card Mixing UHD - AV Output Card Mixing UHD - Fiber Output Card
Extender
Mixing UHD - 4K HDBT Extender Mixing UHD - 4K Fiber Extender
Optional Platform/Software for DS.X
Environment Controller
Operation & Maintenance Platform
KVM User Logs Software
Mounting Kits
Rack Mounting Kit Wall Mounting Kit

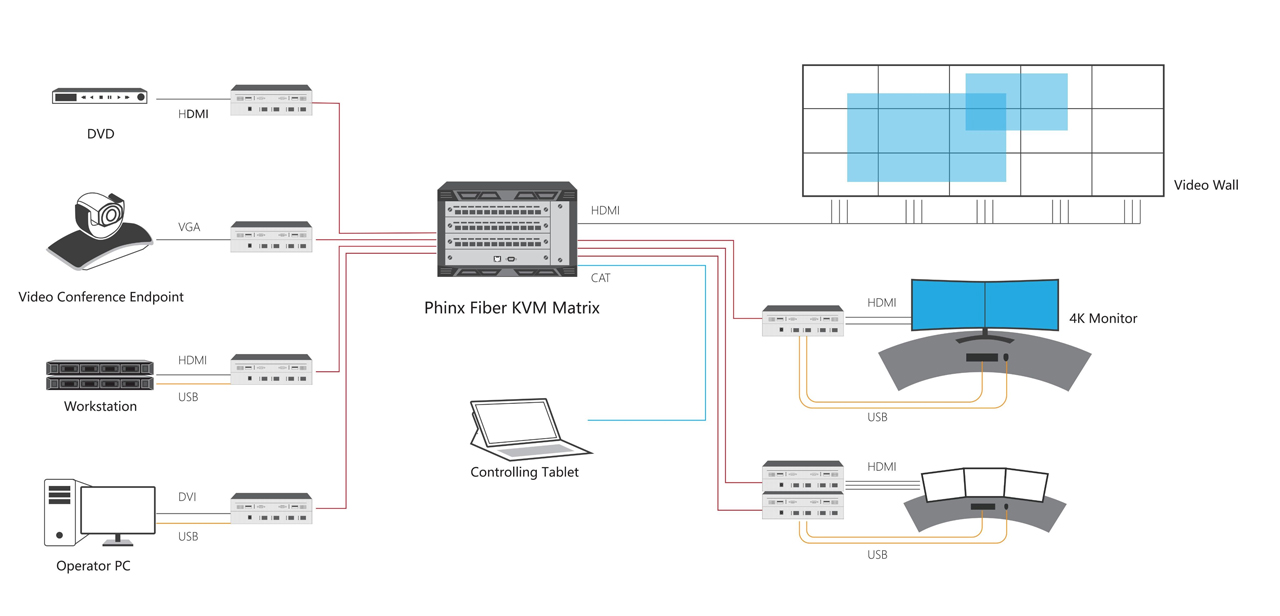

Schematic of Phinx-144 Ports Fiber KVM Matrix

Schematic of Phinx-144 Ports Fiber KVM Matrix zoom in
Schematic of Phinx-144 Ports Fiber KVM Matrix

Video of Phinx-144 Ports Fiber KVM Matrix

Video of Phinx-144 Ports Fiber KVM Matrix
Inquiry Now
We're here to help with the ip video wall controller solutions for your business

Documents of Phinx-144 Ports Fiber KVM Matrix

Documents of Phinx-144 Ports Fiber KVM Matrix
Phinx-144 Ports Fiber KVM Matrix
