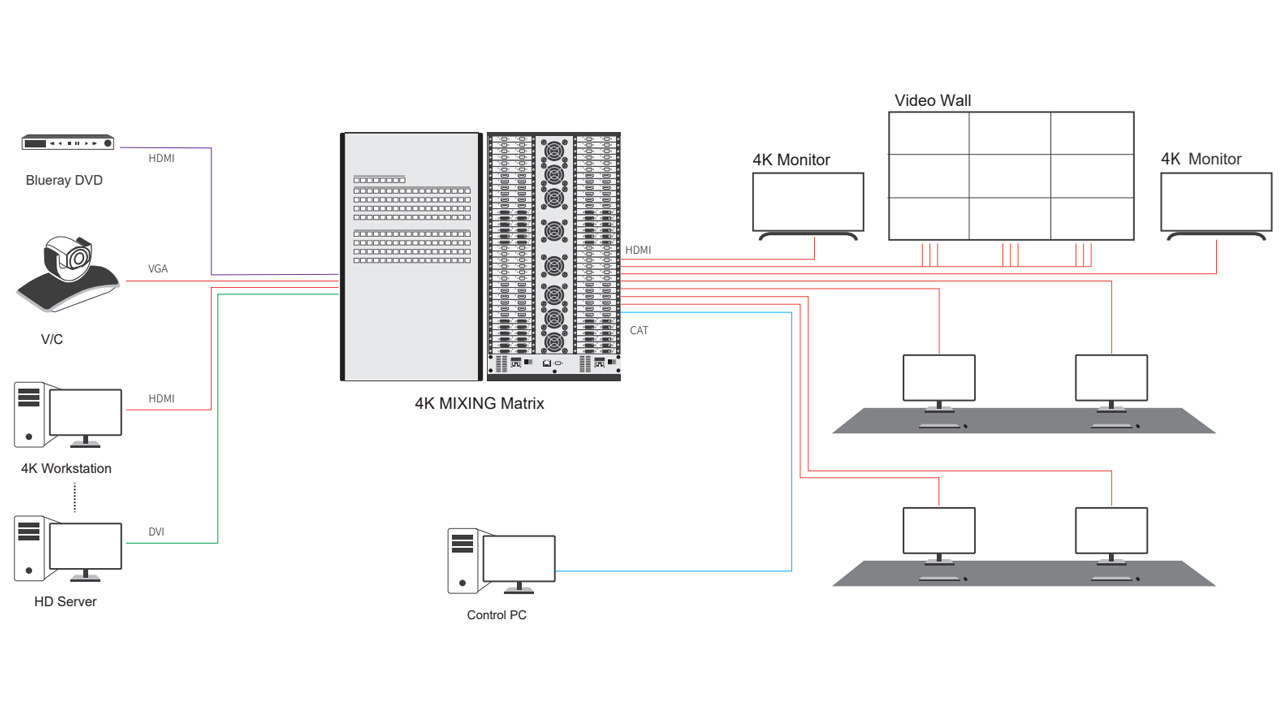

There are 5 configurable matrix chassis/enclosures, HD3636-4K is the enclosure for Video Matrix Switcher - 36x36
Image Processing | Full Advanced FPGA architecture |
Bandwidth | up to 6 Gbps per channel |
Resolution | Support 3840x2160@60 and downward compatibility |
Video format | HDMI, DVI, VGA, SDI, AV, IP, H.265/H.264, HD-BaseT |
Maximum presets | 18 |
Power-down memory | Yes |
Power-off site protection | Yes |
Channel | max. 36 channels IN & 36 channels OUT |
Communication Port | RS232 x1, RJ45x1 |
Protocol | HDMI 2.0 (part), HDCP, DVI 1.0, RS232, UDP |
Transmission Distance | 120m over CAT6, 20km over fiber optic |
Power Supply | redundancy110-220V PSU, |
Dimension | 481x290x353mm, 19" rack-mounted |
Modular video matrix architecture, Flexible & Configurable
Seamless switching with no Black screen
hot-swappable I/O card and PSU
Compatible with 3rd party controller
